Front Rack of Spytan Ebike
Practical Front Rack

The Spytan electric bike comes equipped with a front rack. With a generous payload capacity of 80 lbs, this front rack provides ample space to carry your belongings or even your beloved pet.

Spytan Ebike with Convenient Folding Frame
Convenient Folding Design

Experience convenience with the folding frame of the SPYTAN Ebike. This folding frame allows you to effortlessly collapse the bike, making it a perfect fit for tight spaces or the trunk of your car.

Hellaflush Design of Two Front Wheels of Spytan Ebike
Hellaflush Design of Two Front Wheels

Beyond the visual appeal, the Hellaflush design also improves the bike's stability.

Discover SPYTAN M-320

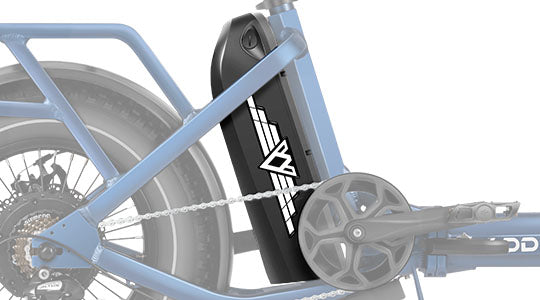

UL-Certified Battery Cell

48V*20Ah battery delivers a range of up to 90 miles. The battery is certified in the US and Canada keeps you save.

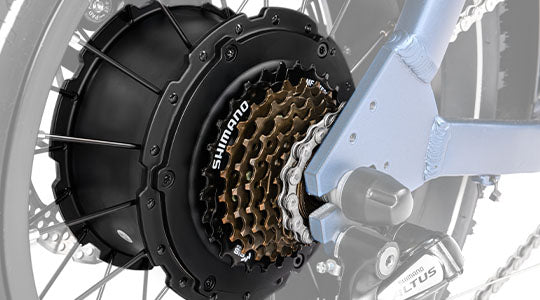

750W Rear Drive Motor

The motor is delivering superior performance and acceleration to add power to your riding experience.

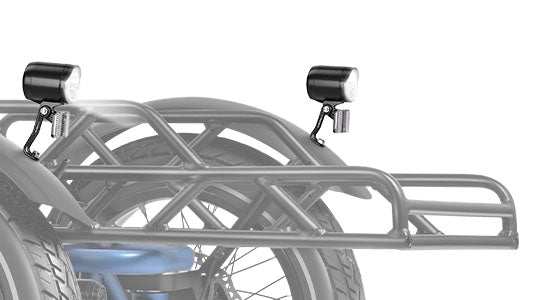

Dual-Headlight

It provides a broader and more focused beam of light. This can improves visibility, making it easier to see and be seen.

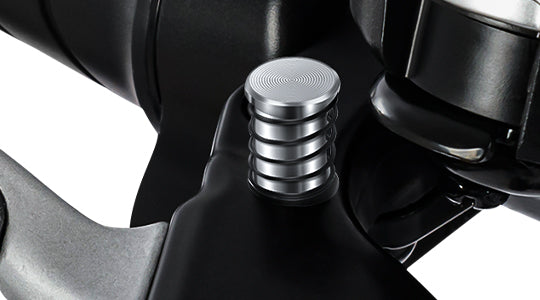

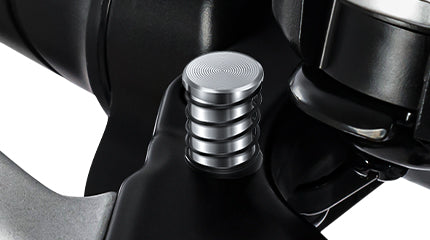

Parking Brake System

You can park the trike on an incline, the parking brake provides additional safety and security.

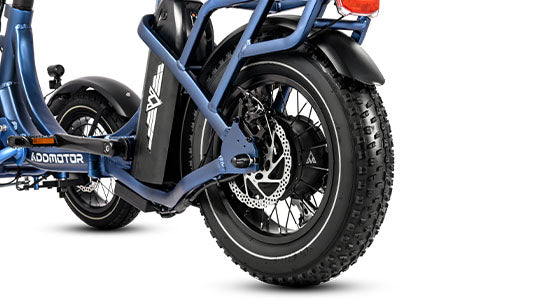

Addmotor Fat Tires

It equips with 16''*3.0'' front wheels and 16''*4.0'' rear wheel. It allows the ebike to tackle a wide range of riding conditions.

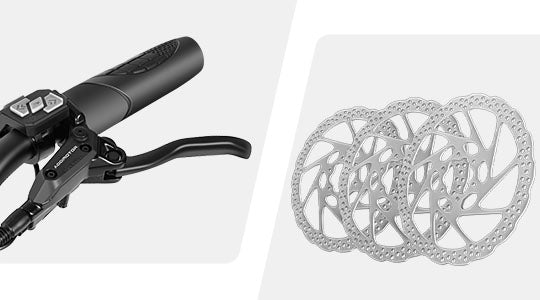

Triple Disc Brakes

Tektro mechanical disc brakes deliver reliable stopping power, ensuring controlled braking in any situation.

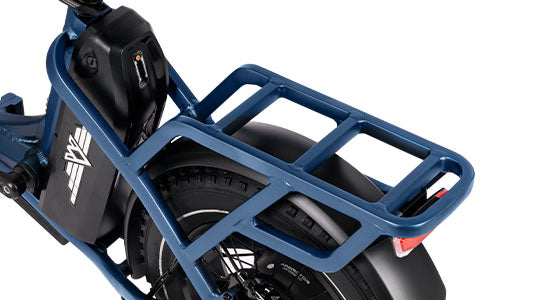

Durable Rear Rack

Its sturdy build ensures that it can handle various loads without compromising its structural integrity.

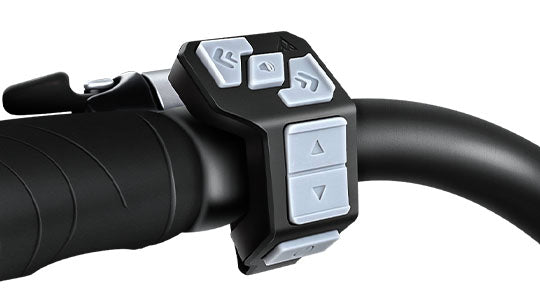

Integrated Button

It features a user-friendly LCD display and integrated handlebar button for convenient access to functions.

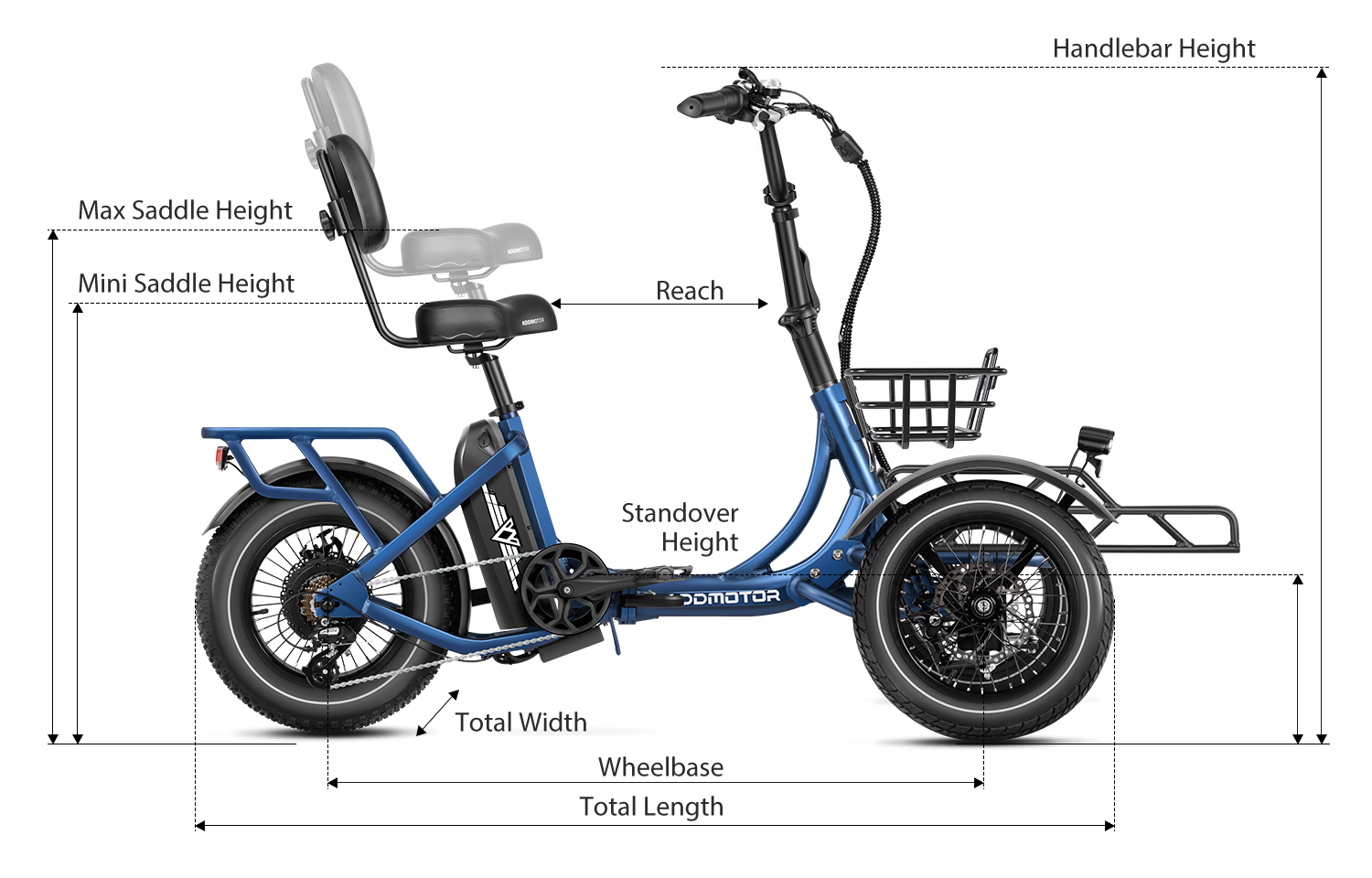

Size & Fit
Rider Height 4'9"-5'9"
Tire Size 16" X 3.0" F/ 16" X 4.0" R
Reach 18.5"
Total Length 77.4"
Wheel Base 48.4"
Total Width 34.1"
Standover Height 11"
Saddle Height 28"-35"
Handlebar Height 44.1"
Front Rack Size 23.43" x 15.75"
Folded Size 50.4"L x 42.1"W x 31.5H(without saddle)
Measuremnt of Spytan Ebike
Technical
Charger 48V*2.0A 5 Pins US Standard DC Charger 5 Pins With Auto Magnetic Suction
Battery 48V 20Ah (960Wh) Battery w/ Samsung Lithium-Ion Cells Charging Time: 8-10 Hrs; Rated For 1000-1500 Charge Cycles
Speed Up to 20MPH
Range Up to 90 Miles(PAS1)
Motor 48V*750W Rear-Mounted Brushless Motor
Payload 380 LBS
Perfromance
Display Addmotor EB 2.0 LCD Display
Controller Addmotor 25A Controller
Throttle Right Hand Half Twist Throttle with Switch
Lights Latest EB 2.0 front lights and 5-in-1 taillight
Wiring Water-Resistant Connectors and Wiring Harness
Pedal Assist Intelligent 7 Level Pedal Assist; Speed Sensor
Frame 7020 Aluminum Alloy Frame
Brake Mechanical Disc Brake
Brake Rotors 180mm Front / 2*180mm Rear Rotors on 3 Wheels
Chain KMC Rust Resistant Chain
Handlebar Black Aluminum
Seat Post Aluminum 270mm x 31.6mm
Derailleur SHIMANO TOURNEY TY300 Rear Derailleur;7-Speed
Fenders Aluminum Fenders; Front & Rear Included
Basket Front Basket: Removable; Aluminum Front Rack: Removable; Aluminum; 80lbs Carrying Capacity
